Quick Dateils Type:

Dateils products descrpition

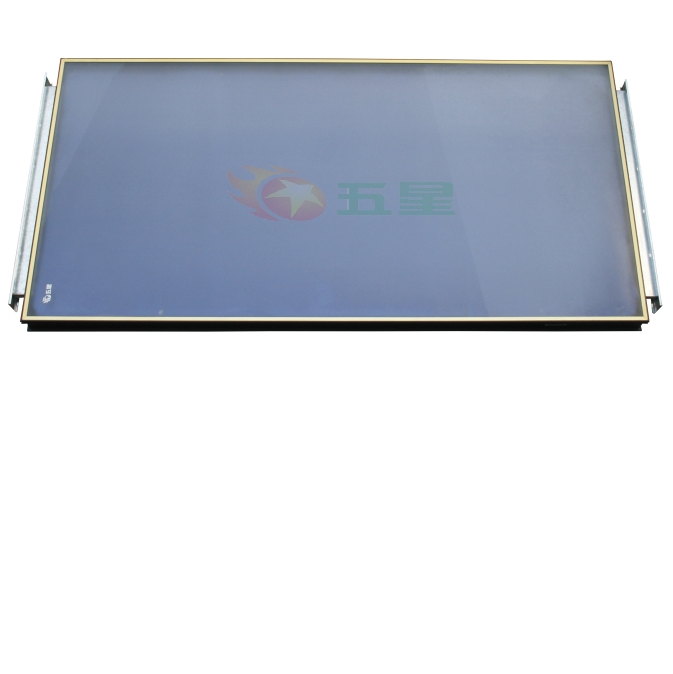

FIVESTAR solar air collector absorb the heat from the sunshine and transfer the heat to the air directly. By heating the air by solar, it's widely used for many different kinds of applicaction such as room space heating, drying process for seafood, vegetable,fruit,meat etc.

products descrpition

 FIVESTAR Solar Hot Air Collector Specification Sheet



Model FS-KQJRQ-2.0
Base Information Dimension 2060 x 1000 x 95 mm
Overall Area 2.0m2
Absorber Area 1.9 m2
Recommended Flow 100m³/h
Cover Material Low iron temperature glass
transmittance  92%
Absorber Absorber Material Aluminium
Surface Coating Slective Blue Coating or Selective Black Chrome
Insulatin Insulation Material Fiber Glass
Thickness 30 mm
Frame Frame Material Aluminium Alloy
Thickness Aluzinc Steel δ0.4mm
Sealing Way Silicon Glue
Medium Air
Connection Way Flange
